Description

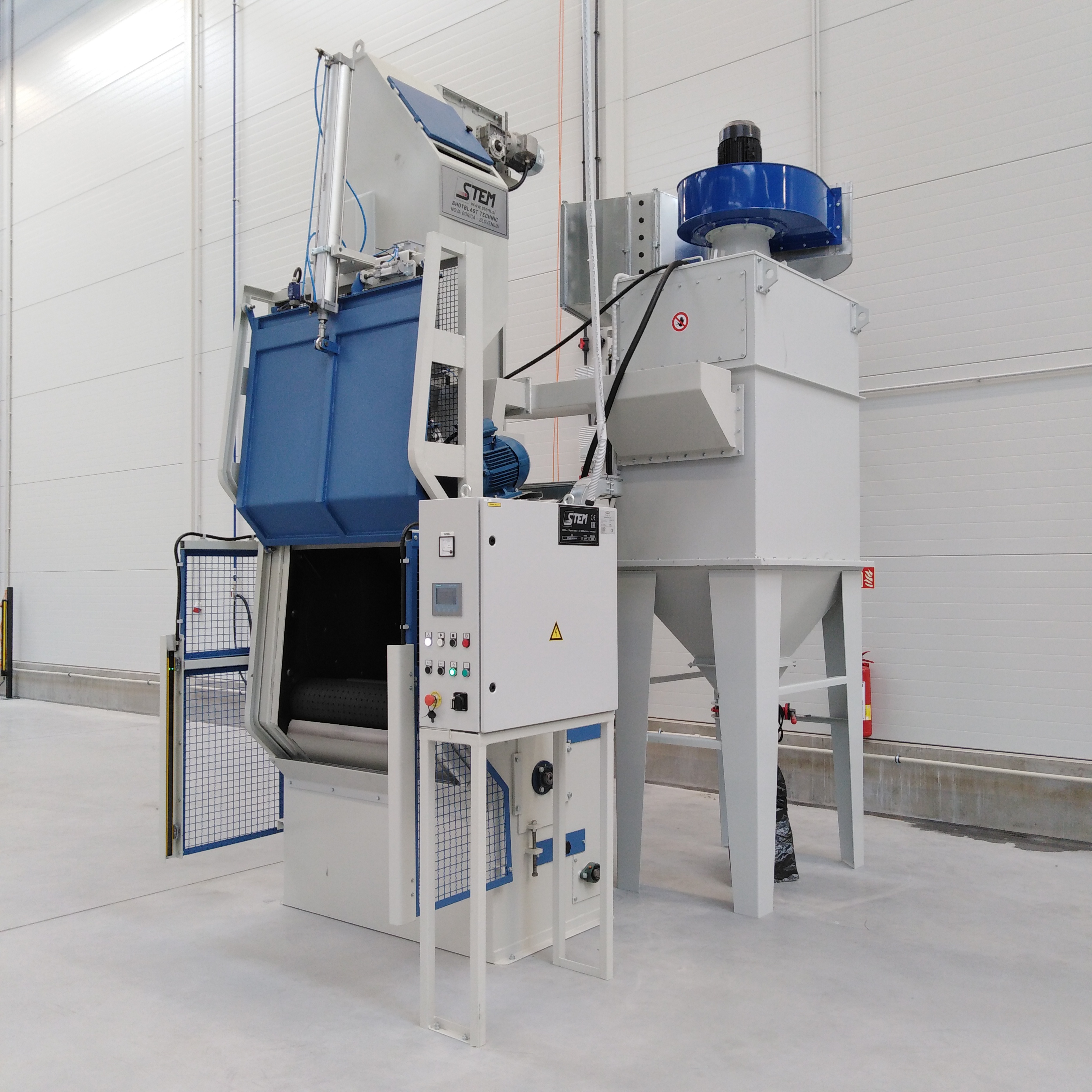

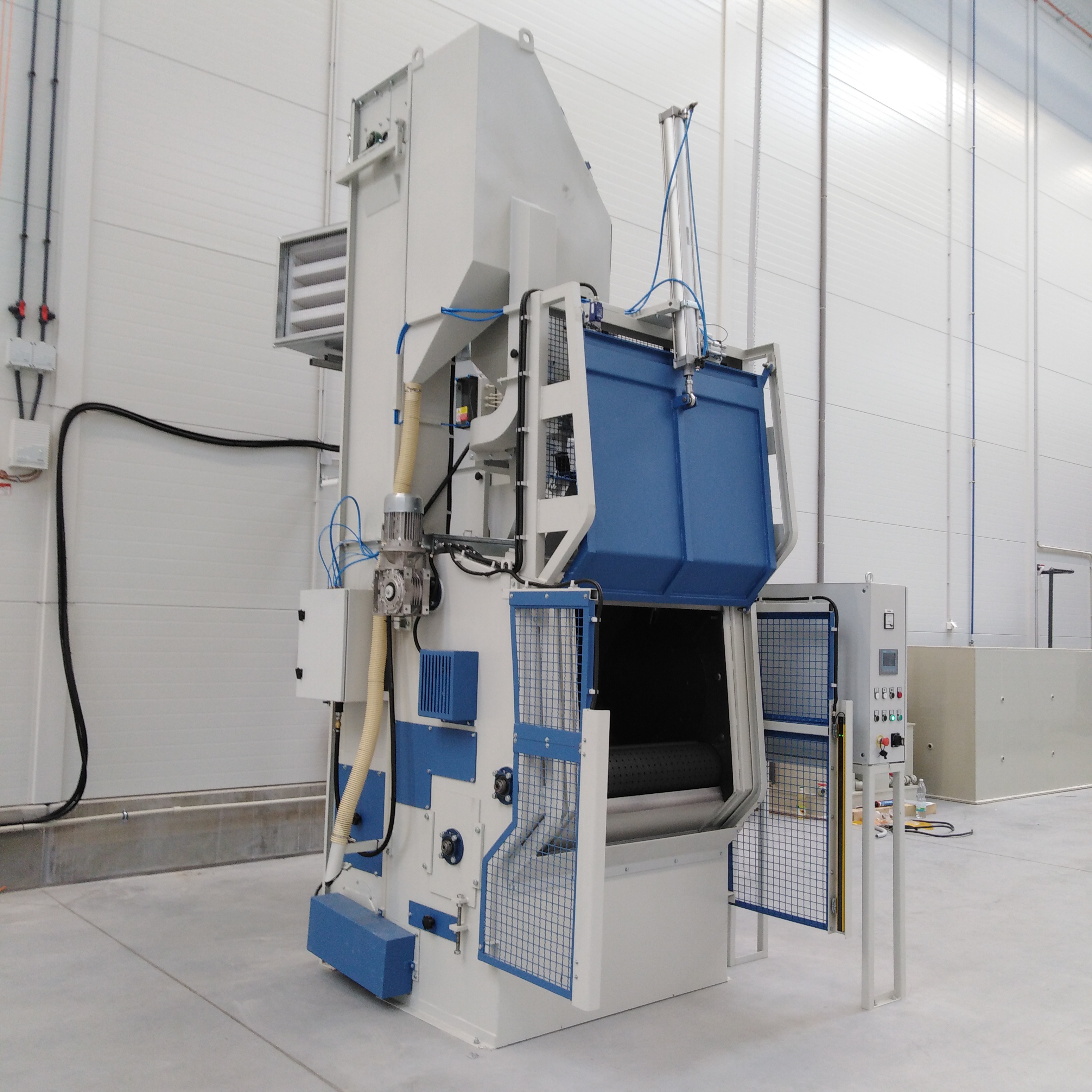

- Drum blast machines are convenient for both low and mass production, and for jetting of metal products, cast pieces, small weldments, and heat-treated products
- Drum blast machines ensure perfect product cleaning from all sides in one operation
- Drum blast machines can be filled either manually or with a loading machine
- Drum blast machines with rubber belt are suitable for jetting products of up to 40 kg
- Drum blast machines with metal belt are suitable for jetting products of 20 to 200 kg
Technical data – standard types
Machine type | B 5×5 | B 7×7 | B 7×9 | B 8,5×10 | |
---|---|---|---|---|---|
Version | R (R/SK) | R (R/SK) | R (R/SK) (S/SK) | R/SK (S/SK) (S/SK/MS) | |
Approximate drum capacity | dm3 | 40 | 110 | 140 | 230 |
Maximum piece weight | kg | 3 | 5 | 10 (15) | 20 (60) (60) |
Maximum weight of charge | kg | 40 | 90 | 250 | 450 |
Chamber diameter | mm | 500 | 700 | 700 | 850 |
Chamber width | mm | 500 | 700 | 900 | 1000 |
Number of throwing units | 1 | 1 | 1 | 1 | |
Throwing unit engine power | kW | 2,2 | 4 | 5,5 | 11 |
Total installed electric capacity | kW | 3,2 (3,5) | 6 (7) | 9 (10) | 21 |
Total length | mm | 850 (2200) | 1550 (3400) | 1600 (3400) | 4200 |
Total width | mm | 1060 | 1360 | 1500 | 1950 |
Total height | mm | 2850 | 3200 | 3650 | 4550 (5200) |
Dust collector type | OP-1V-SF | OP-2V-SF | OP 4 SF | OP 6 SF | |
The amount of extracted air | m3.h-1 | 600 | 1500 | 2000 | 4000 |
Machine type | B 10×12,5 | B 12×16 | B 14×17 | |
---|---|---|---|---|
Version | R/SK (S/SK) (S/SK/MS) | S/SK (S/SK/MS) | S/SK (S/SK/MS) | |
Approximate drum capacity | dm3 | 400 | 580 | 1000 |
Maximum piece weight | kg | 40 (100) (100) | 100 | 200 |
Maximum weight of charge | kg | 1000 | 1300 | 2100 |
Chamber diameter | mm | 1000 | 1200 | 1400 |
Chamber width | mm | 1250 | 1600 | 1700 |
Number of throwing units | 2 (1) | 2 | 2 | |
Throwing unit engine power | kW | 11 (18,5) (18,5) | 18,5 | 18,5 |
Total installed electric capacity | kW | 36 (32) (32) | 62 | 67 |
Total length | mm | 5000 | 5100 | 7000 |
Total width | mm | 3000 | 3600 | 4100 |
Total height | mm | 5000 (5400) | 5800 (6450) | 6900 (7300) |
Dust collector type | OP 9 SF | OP 12 SF | OP 12 SF | |
The amount of extracted air | m3.h-1 | 5000 | 8000 | 8000 – 10000 |
Note! – R = drum rubber belt, S = drum metal belt, SK = hydraulic loader, MS = magnetic separator.
